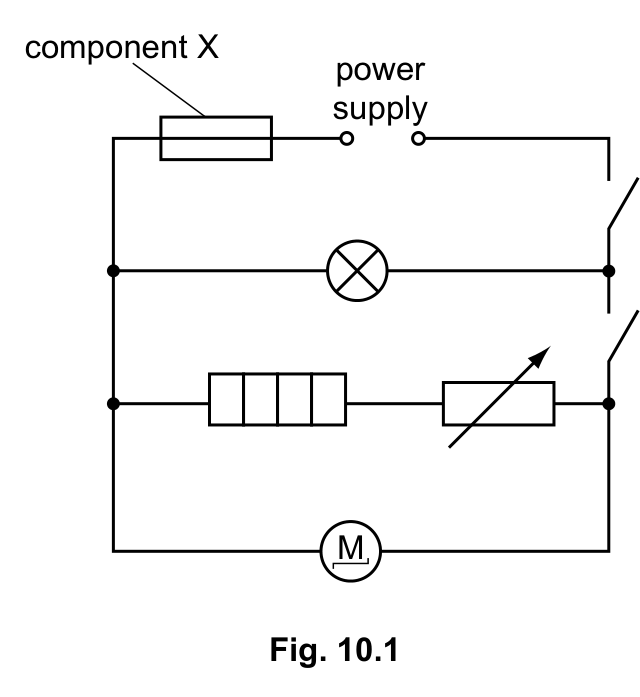

Fig. 10.1 shows a simplified circuit diagram for an electric oven. The oven contains a fan driven by a motor.

On Fig. 10.1, circle the symbol representing the heater.
